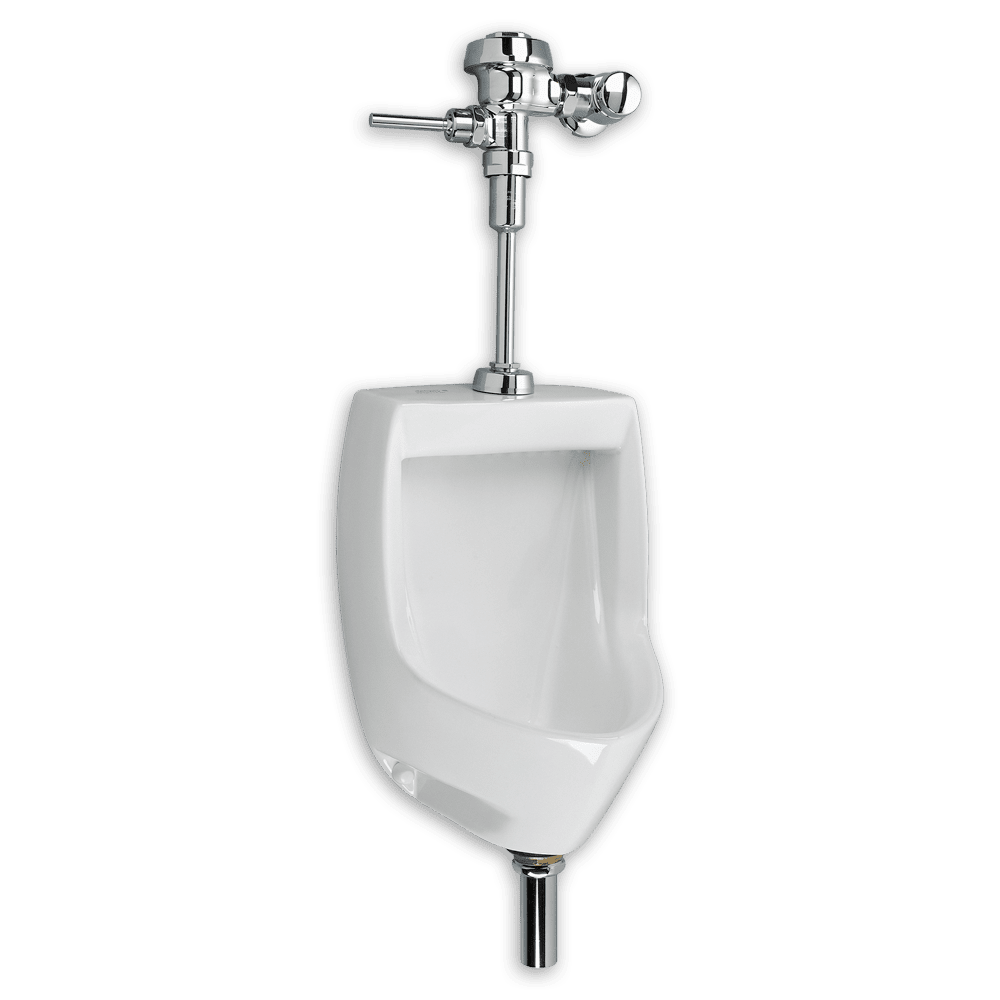

American Standard 6581001.020 – Maybrook 0.125-1.0 gpf Universal Washout Top Spud Urinal

This high-efficiency urinal uses just 0.125 gallons per flush, which is 87% less than a standard 1.0 GPF urinal. Features include a flushing rim and a washout flush action for effectiveness. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.
•Vitreous china
•High efficiency, low consumption operates in the range of 0.125 to 1.0 gpf (0.47 to 3.8 Lpf)
•Flushing rim
•Washout flush action
•Integral strainer
•3/4″ (19 mm) inlet spud
•Outlet spud with 1-1/2″ (38 mm) tubing tailpiece
•Wall hanger
•Fixture only
•Meets ANSI flush requirements at 0.125 to 1.0 gpf (0.47 to 3.8 Lpf)
•NAFTA compliant design  Nominal Dimensions:12-3/4″ x 12-3/4″ x 18″ (324 x 324 x 457 mm)
