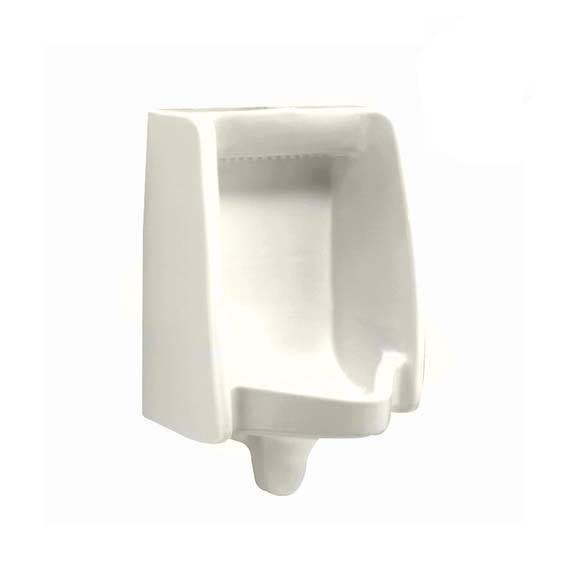

American Standard 6515001.020 – Washbrook 0.125 -1.0 gpf FloWise Washout Back Spud Urinal

This ultra-high-efficiency, low-consumption universal urinal operates in the range of 0.125 GPF – 1.0 GPF. Choose a manual- or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.
•Vitreous china
•High efficiency, low consumption operates in the range of 0.125 to 1.0 gpf (0.47 to 3.8 Lpf)
•Flushing rim
•Elongated 14″ (356 mm) rim from finished wall
•Washout flush action
•Extended sides for privacy
•3/4″ (19 mm) inlet spud
•Outlet connection threaded 2″ (51 mm) NPT
•2 wall hangers
•Fixture only
•Chrome plated non-metallic strainer included
•Meets ANSI flush requirements at 0.125 to 1.0 gpf (0.47 to 3.8 Lpf) Nominal Dimensions:14-1/8″ x 18-7/8″ x 26-1/8″ (359 x 479 x 664 mm)
