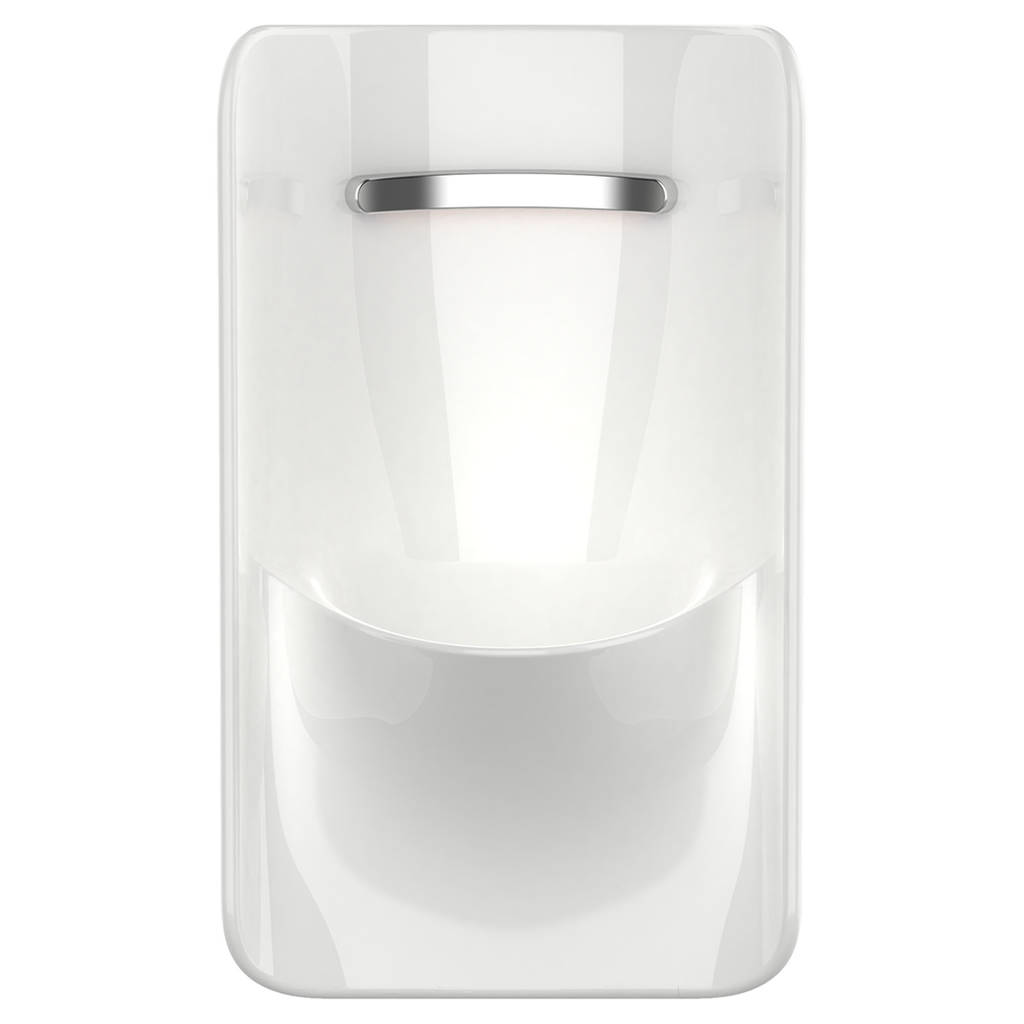

American Standard 6517001EC.020 – Greenbrook Urinal – Back Spud

The Greenbrook Urinal from American Standard is defined by sleek curves designed for practicality and a clean, modern aesthetic. Optimized surface contours and water flushing spreader ensure a thorough rinse and superior splash protection. Large, high-efficiency design operates in the range of 0.125 to 0.50 gpf/0.47 to 1.9 lpf for exceptional performance and water savings.
•
•Highly aesthetic vitreous china urinal with large footprint
•Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
•High Efficiency Urinal (HEU) operates in the range of 0.125 gpf to 0.5 gpf (0.47 Lpf to 1.9 Lpf)
•3/4″ (19 mm) inlet spud with 2″ (51 mm) outlet spud
•EverClean® is an antimicrobial additive that inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface SustainabilityCEC Listed when used with 0.125 gpf urinal flush valveWaterSense Certified when used with 0.125 gpf or 0.5 gpf urinal flush valves Nominal Dimensions:15-1/8″ x 16-5/8″ x 27-1/2″ (384 x 422 x 698 mm)
