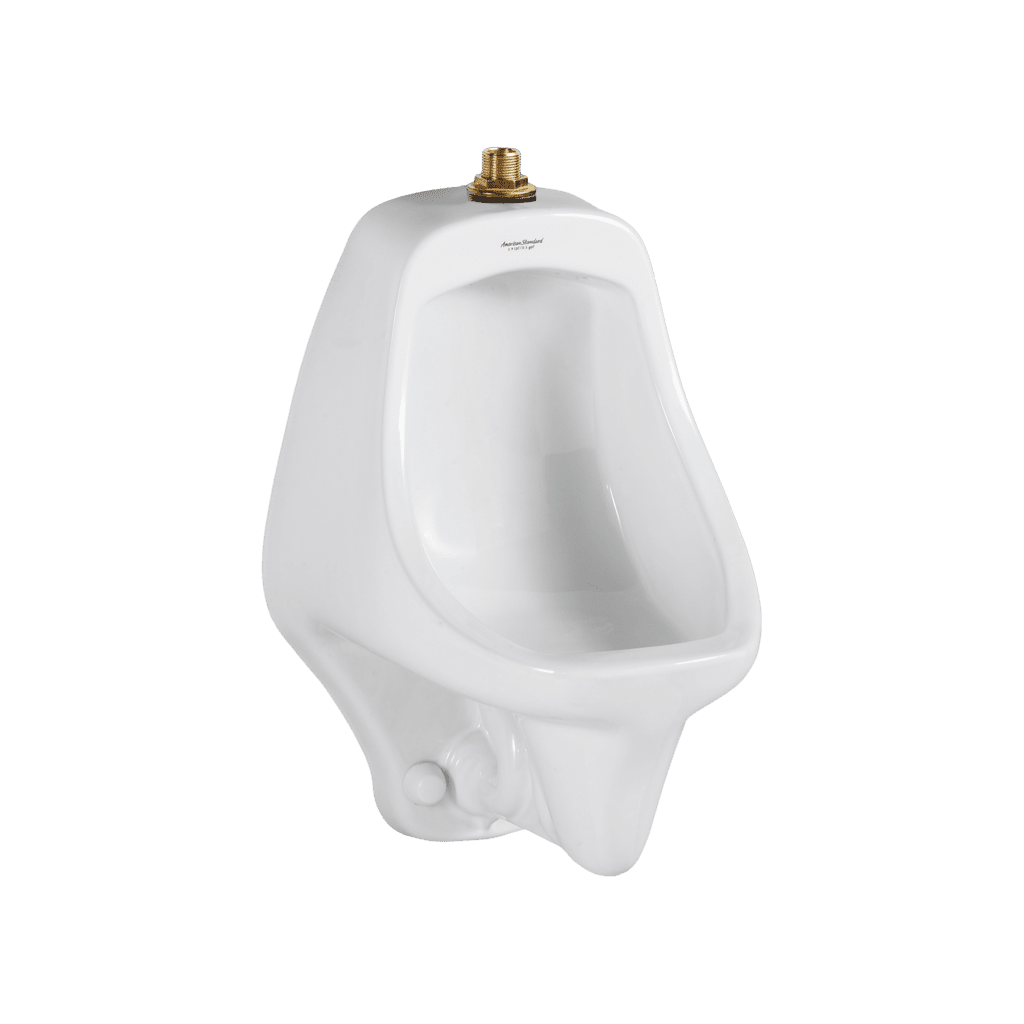

American Standard 6550001.020 – Allbrook 1.0 gpf Siphon Jet Top Spud Urinal

0.5 to 1.0 gpf (1.9 to 3.8 Lpf) urinal siphon jet
•Vitreous china
•High efficiency
•Flushing rim
•Siphon jet flush action
•3/4″ (19 mm) inlet spud
•Outlet connection threaded 2″ (51 mm) NPT
•Fixture only
•Meets ANSI flush requirements at 0.5 to 0.1.0 gpf (1.9 to 3.8 Lpf) Nominal Dimensions:14″ x 14-5/16″ x 21-1/2″ (356 x 364 x 546 mm)Recommended working pressure – between 20 psi at valve when flushing and 80 psi static
