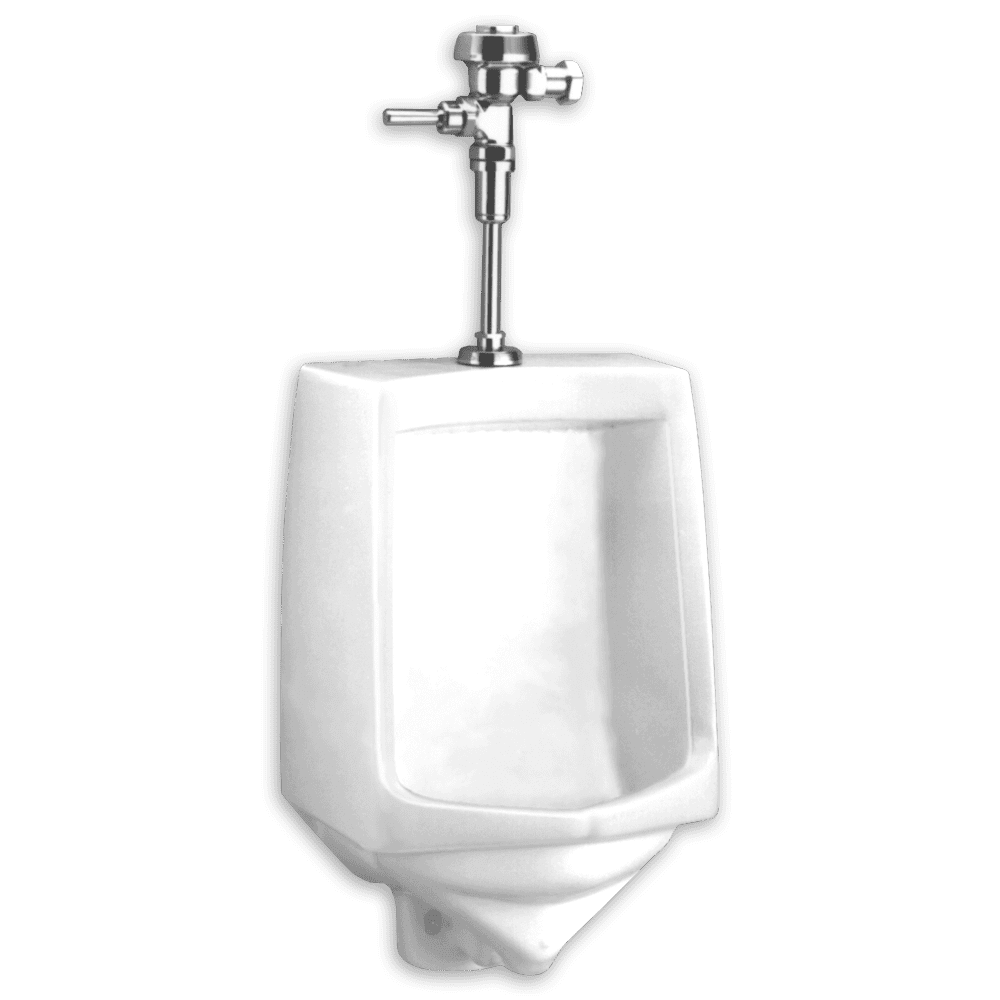

American Standard 6561017.020 – Trimbrook 1.0 gpf Siphon Jet Top Spud Urinal

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design could work well in traditional and casual commercial environments.
•1.0 gpf/3.8 Lpf urinal siphon jet
•Vitreous china
•Low consumption (1.0 gpf/3.8 Lpf)
•Flushing rim
•Siphon jet flush action
•Extended sides for privacy
•3/4″ (19 mm) inlet spud
•Outlet connection threaded 2″ (51 mm) NPT
•Two wall hangers
•Fixture only
•Meets ANSI flush requirements at 0.85 to 1.0 gpf (3.2 to 3.8 Lpf) Nominal Dimensions:14″ x 17-1/2″ x 26-3/4″ (356 x 445 x 679 mm)Recommended working pressure – between 20 psi at valve when flushing and 80 psi static.
