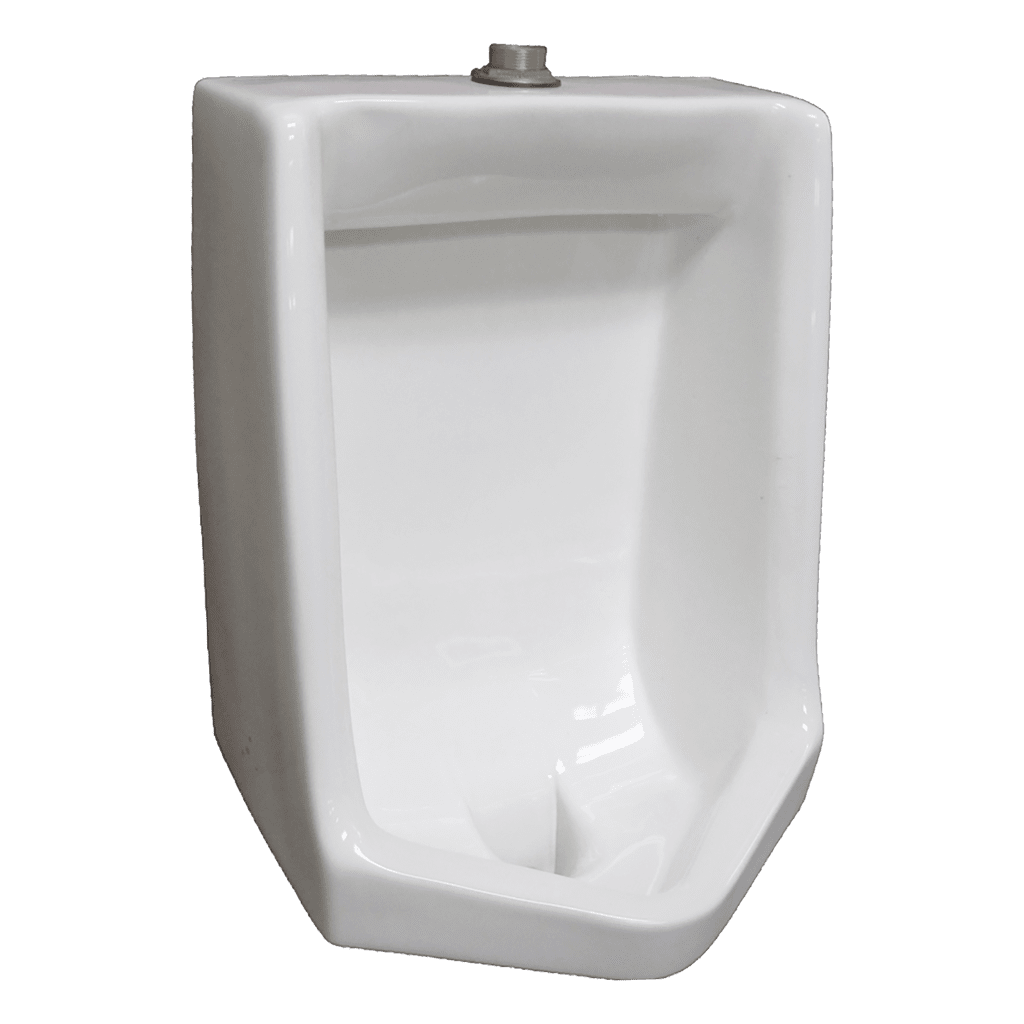

American Standard 6601012.020 – Lynbrook 1.0 gpf Blowout Top Spud Urinal

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and a blowout flush action for effectiveness, plus integral privacy shields. Its practical design makes it ideal for commercial applications that don’t have privacy walls between urinals.
•1.0 gpf/3.8 Lpf urinal blowout
•Vitreous china
•Low consumption (1.0 gpf/3.8 Lpf)
•Flushing rim
•Blowout flush action
•Privacy shields
•1-1/4″ (32 mm) inlet spud
•Outlet connection threaded 2″ (51 mm) NPT
•Two wall hangers
•Fixture only
•Meets ANSI flush requirements at 0.85 to 1.0 gpf (3.2 to 3.8 Lpf) Nominal Dimensions:14″ x 18-1/2″ x 28-3/4″ (356 x 470 x 730 mm)Recommended working pressure – between 20 psi at valve when flushing and 80 psi static.
